Empat Warna Mesin Flexo Printing
Tanyakan Tongkat
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Perincian Produk
Empat Warna Mesin Flexo Printing

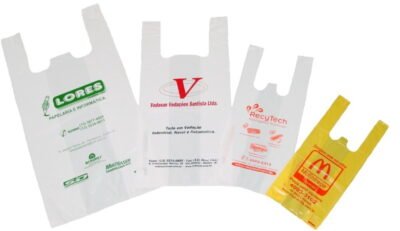

Four Colour Flexo Printing Machine suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Performance and Features
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360 degree countinuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360 degree countinuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Technical Parameter:
|
Type
|
YT-4600
|
YT-4800
|
YT-41000
|
|
Max.Effective Printing Width
|
560mm
|
760mm
|
960mm
|
|
Max.Web Width
|
600mm
|
800mm
|
1000mm
|
|
Max.Printing Speed
|
60m/min
|
60m/min
|
60m/min
|
|
Max.Mechanical Speed
|
60 m/min
|
60 m/min
|
60 m/min
|
|
Max.Diameter of Roll Material
|
450mm
|
450mm
|
450mm
|
|
Internal Diameter of Roll Core
|
76mm
|
76mm
|
76mm
|
|
Rang of Repeat Printing Length
|
191-914mm
|
191-914mm
|
191-914mm
|
|
Accuracy of Registration
|
+/- 0.5mm
|
+/- 0.5mm
|
+/- 0.5mm
|
|
Plate Thickness
(Bothside adhesive included)
|
2.38mm
|
2.38mm
|
2.38mm
|
|
Heating Power
|
7Kw
|
10.5Kw
|
14Kw
|
|
Total Power
|
11.5Kw
|
15Kw
|
18.5Kw
|
|
Weight of Machine
|
3000kg
|
3500kg
|
4000kg
|
|
Overall Dimension
|
4.8*1.6*2.4m
|
4.8*1.8*2.4m
|
4.8*2*2.4m
|
OPTIONAL EQUIPMENT:
1) Edge position control
2) Ceramic anilox roller
3) Ink pump
4) Magnetic power brake
